2023 ITW GSE JetEx 6400 28 Volt DC GPU
Sold
Specifications
| Manufacturer | ITW GSE |
| Model | JetEx 6400 |
| Year | 2023 |
| Condition | New |
| Serial Number | 322PS23916 |
Description
Brand new ITW GSE JetEx 6400 - 28.5V DC GPU with Cummins Diesel Engine.

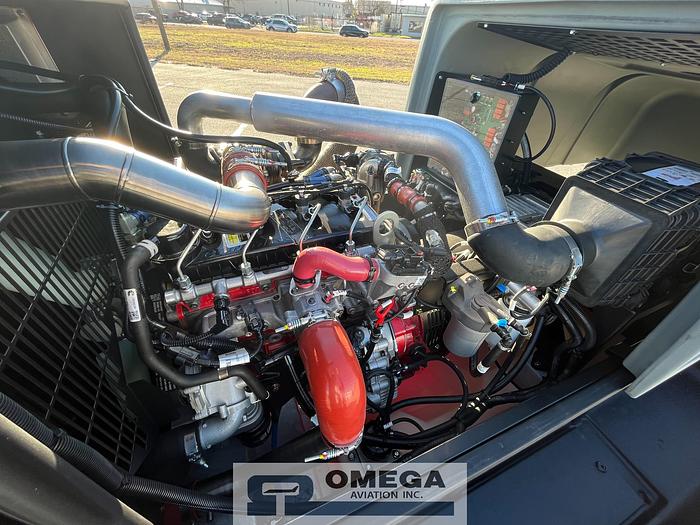

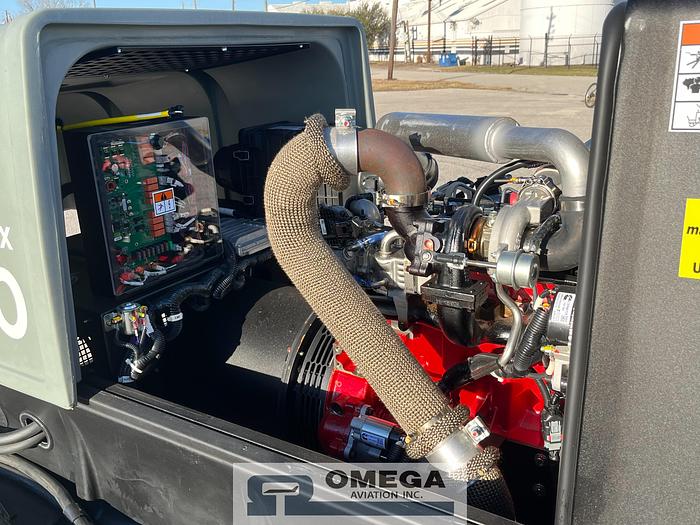

Engine

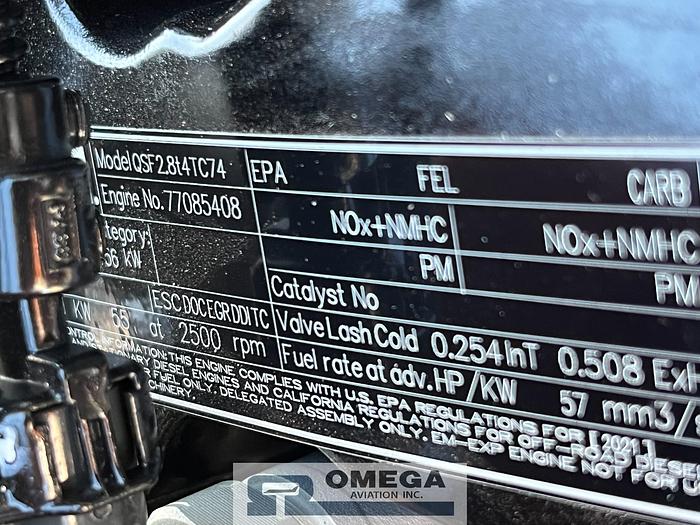

- Tier 4: Cummins QSF2.8 diesel
- Turbocharged 4-stroke, inline 4 cylinder common rail fuel system
- Full application approval by Cummins
- 12 VDC battery system
- Electronic governor system (via the engine’s ECM)
- Intake manifold pre-heater for cold weather starting
Performance
- 28.5 volts DC output
- Continuous rating: 600 amps at 28.5 VDC
- 2000 amperes available for aircraft engine starting
- Line drop compensation assures proper voltage at aircraft plug
- Current Limiting adjustable from 300 to 2000 amperes
- To maximize fuel efficiency, engine speed varies based upon load
Dimensions & Weight
- Length: 103” (2,615 mm)
- Width: 66.2” (1,682 mm)
- Height: 63.9” (1,622 mm)
- Weight 2800 lbs. (1,270 kgs)

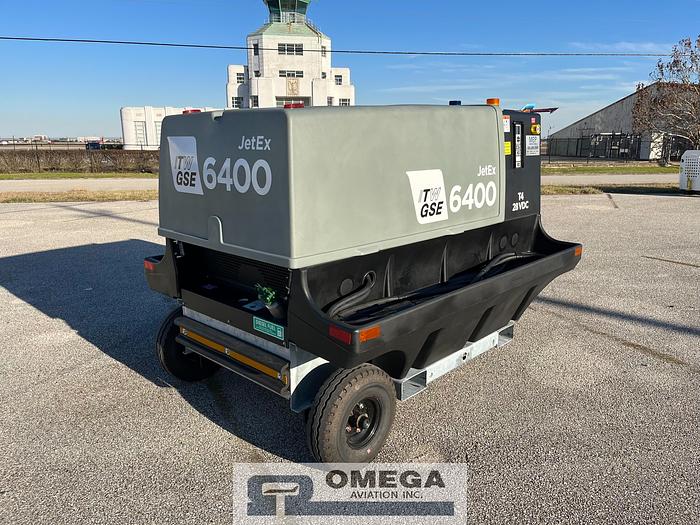

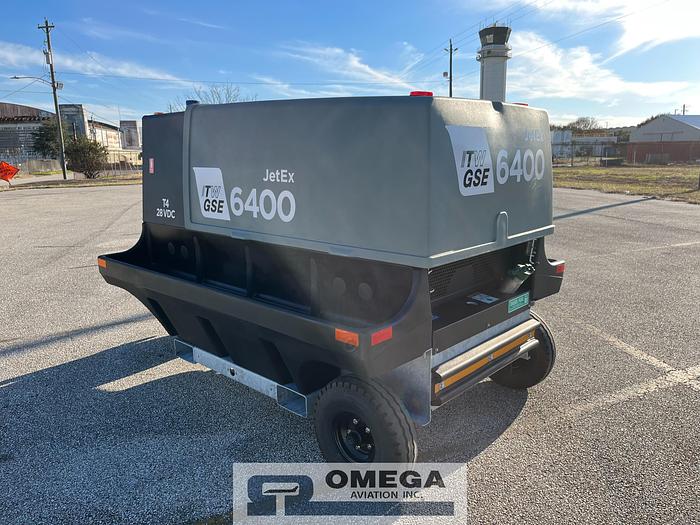

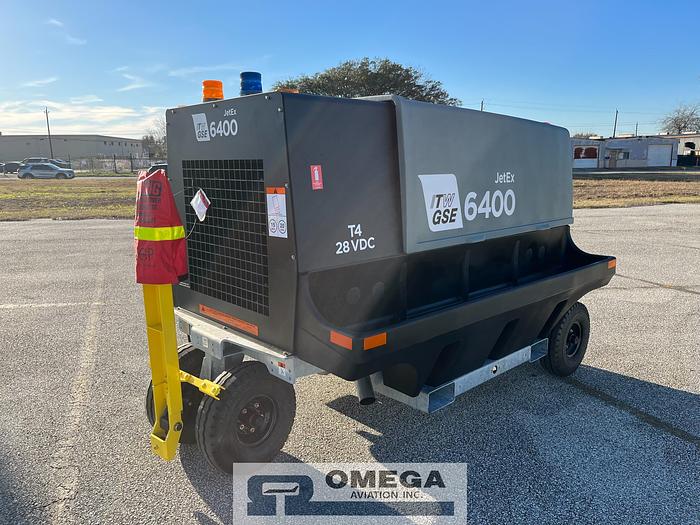

*Photos and video are of a 2022 model, actual unit available for sale is 2023.
